Latham Steel, right here in Hamilton, is a trusted name for industrial components built to handle the toughest conditions. We take pride in manufacturing and supplying Alloy Steel F9 Flanges, a product line engineered for reliability in high-stress environments. Our deep understanding of the local market’s needs ensures that every flange we produce meets the rigorous standards demanded by New Zealand’s critical industries, from energy to heavy processing. When you choose Latham Steel, you’re choosing a partner committed to quality and durability.
These F9 flanges are defined by their specific composition, which includes chromium and molybdenum, giving them a distinct edge. This alloy mix is carefully balanced to provide exceptional strength and resistance to oxidation and corrosion, especially under high temperatures. The resulting mechanical properties are impressive, offering high tensile strength and excellent creep resistance. This means they maintain their integrity and performance over long periods, even when consistently exposed to intense heat and pressure, making them a fundamentally robust choice.
Alloy Steel Flanges Specification :Â ASTM A182 / ASME SA182
Dimension Standard :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :Â 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

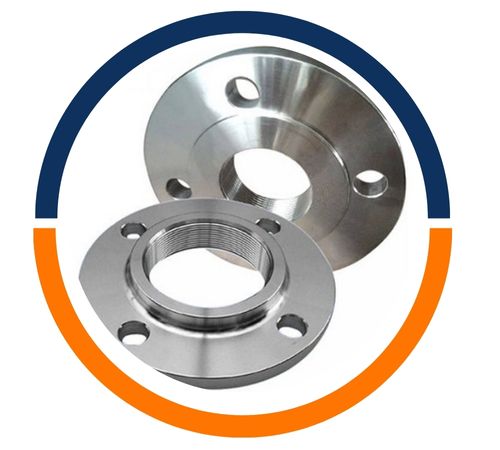

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges :Â DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges :Â JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges :Â BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F9 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | – | 8.0-10.0 | 0.90-1.10 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F9 | 585 | 380 | 20 | – | 179-217 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F9 | K90941 | 1.7386 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam.
of
Hub |
Diameter of Raised Face |
Length Hub.Y |
Thread Length |
Diam.
of Bolt
Circle |
Diam.
of Bolt
Holes |
Number
of Bolts |
Diam. of
Bolts
(inch) |
KG |
LB |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
inch |
dn |
O |
C |
X |
G |
Y |
T |
BC |
BH |
BN |
BD |
||
|
1/2″ |
15 |
89.00 |
11.20 |
30.20 |
35.10 |
15.70 |
15.70 |
60.50 |
15.80 |
4 |
1/2″ |
0.4 |
0.9 |
|
3/4″ |
20 |
98.50 |
12.70 |
38.10 |
42.90 |
15.70 |
15.70 |
69.90 |
15.80 |
4 |
1/2″ |
0.7 |
1.5 |
|
1″ |
25 |
108.00 |
14.20 |
49.30 |
50.80 |
17.50 |
17.50 |
79.30 |
15.80 |
4 |
1/2″ |
0.8 |
1.8 |
|
1-1/4″ |
32 |
117.50 |
15.70 |
58.70 |
63.50 |
20.60 |
20.60 |
88.90 |
15.80 |
4 |
1/2″ |
1.2 |
2.6 |
|
1-1/2″ |
40 |
127.00 |
17.50 |
65.00 |
73.20 |
22.40 |
22.40 |
98.60 |
15.80 |
4 |
1/2″ |
1.5 |
3.3 |
|
2″ |
50 |
152.50 |
19.10 |
77.70 |
91.90 |
25.40 |
25.40 |
120.70 |
19.10 |
4 |
5/8″ |
2.3 |
5.1 |
|
2-1/2″ |
65 |
178.00 |
22.40 |
90.40 |
104.60 |
28.40 |
28.40 |
139.70 |
19.10 |
4 |
5/8″ |
3.7 |
8.1 |
|
3″ |
80 |
190.50 |
23.90 |
108.00 |
127.00 |
30.20 |
30.20 |
152.40 |
19.10 |
4 |
5/8″ |
4.1 |
9 |
|
3-1/2″ |
90 |
216.00 |
23.90 |
122.20 |
139.70 |
31.80 |
31.80 |
177.80 |
19.10 |
8 |
5/8″ |
5.1 |
11.2 |
|
4″ |
100 |
228.50 |
23.90 |
134.90 |
157.20 |
33.30 |
33.30 |
190.50 |
19.10 |
8 |
5/8″ |
5.9 |
13 |
|
5″ |
125 |
254.00 |
23.90 |
163.60 |
185.70 |
36.60 |
36.60 |
215.90 |
22.40 |
8 |
3/4″ |
7 |
15.4 |
|
6″ |
150 |
279.50 |
25.40 |
192.00 |
215.90 |
39.60 |
39.60 |
241.30 |
22.40 |
8 |
3/4″ |
8.4 |
18.5 |
|
8″ |
200 |
343.00 |
28.40 |
246.10 |
269.70 |
44.50 |
44.50 |
298.50 |
22.40 |
8 |
3/4″ |
13 |
28.6 |
|
10″ |
250 |
406.50 |
30.20 |
304.80 |
323.90 |
49.30 |
49.30 |
362.00 |
25.40 |
12 |
7/8″ |
18 |
39.5 |
|
12″ |
300 |
482.50 |
31.80 |
365.30 |
381.00 |
55.60 |
55.60 |
431.80 |
25.40 |
12 |
7/8″ |
29 |
64 |
|
14″ |
350 |
533.50 |
35.10 |
400.10 |
412.80 |
57.20 |
57.20 |
476.30 |
28.50 |
12 |
1″ |
39 |
86 |
|
16″ |
400 |
597.00 |
36.60 |
457.20 |
469.90 |
63.50 |
63.50 |
539.80 |
28.50 |
16 |
1″ |
47 |
103 |
|
18″ |
450 |
635.00 |
39.60 |
505.00 |
533.40 |
68.30 |
68.30 |
577.90 |
31.80 |
16 |
1 1/8″ |
57 |
126 |
|
20″ |
500 |
698.50 |
42.90 |
558.80 |
584.20 |
73.20 |
73.20 |
635.00 |
31.80 |
20 |
1 1/8″ |
76 |
167 |
|
24″ |
600 |
813.00 |
47.80 |
663.40 |
692.20 |
82.60 |
82.60 |
749.30 |
35.10 |
20 |
1 1/4″ |
97 |
214 |
Latham Steel is a top manufacturer and supplier of high-quality Alloy Steel F9 Flanges products in Hamilton, New Zealand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
The primary use for these robust flanges is in systems where high temperatures and corrosive conditions are the norm. You’ll find them playing a critical role in power generation plants, within petrochemical refineries, and in various high-temperature processing applications. They are essential for connecting piping and equipment that carries superheated steam, hot oils, and other aggressive media. Their reliability makes them indispensable for ensuring the safety and efficiency of these complex industrial systems, where failure is not an option and long-term performance is paramount.
