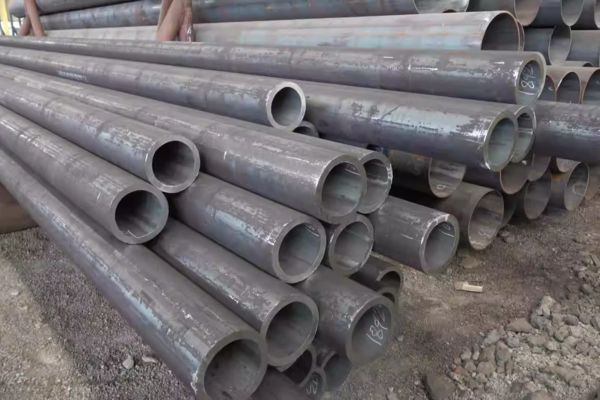

Situated in the heart of Hamilton’s industrial landscape, Latham Steel takes pride in its role as a trusted manufacturer and supplier, delivering robust solutions to New Zealand’s key sectors. Our specialty lies in providing high-performance Alloy Steel P12 Pipes, engineered for resilience and reliability. We understand the critical demands of local industry, and our commitment is to offer products that not only meet but exceed expectations, ensuring your projects are built on a foundation of proven strength and local expertise.
The strength of Alloy Steel P12 Pipes comes from a carefully balanced composition, primarily chromium and molybdenum, which gives them a real edge in challenging environments. This mix results in pipes that offer excellent tensile strength and good creep resistance, meaning they can handle sustained high pressures and temperatures without compromising their integrity. It’s this reliable combination of mechanical properties that makes them a go-to choice for situations where failure simply isn’t an option.
| Size | 1/8NB TO 24NB IN |
| Type | Seamless |
| Outer Dimensions | 19.05mm – 114.3mm |
| ASTM A335 P12 Pipe Wall Thickness | 2.0mm – 14 mm |
| Length | max 16000mm |
| Schedule | Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk. |
| Length | Single Random, Double Random & Cut Length. |
| Tubing End | Plain End, Beveled End, Treaded. |
| Standard | ASTM A335 P12, SA335 P12 (with IBR Test Certificate) |
| Thickness | 3-12mm |
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |

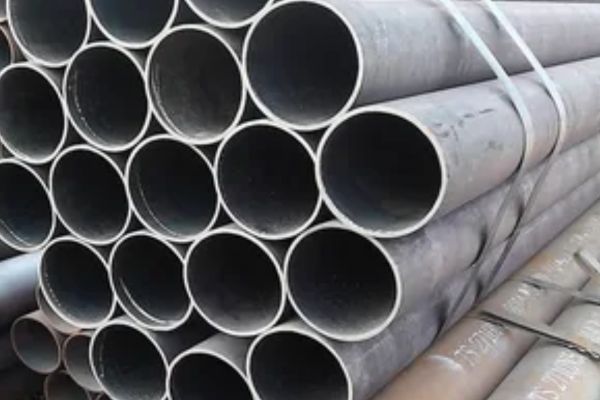

| Type | Seamless / ERW / Welded / Fabricated |

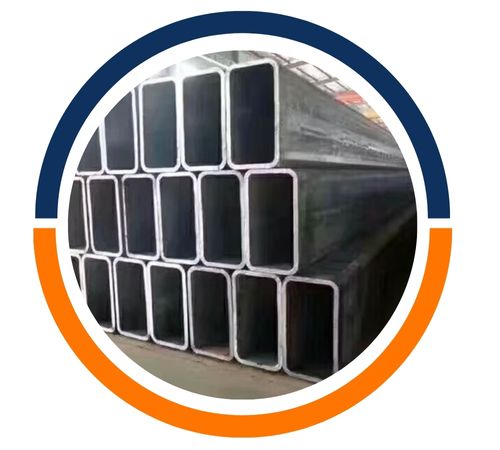

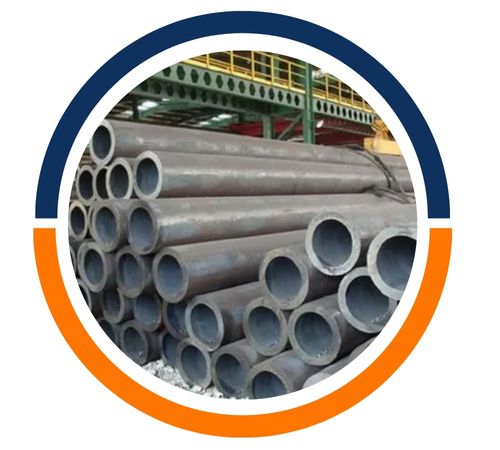

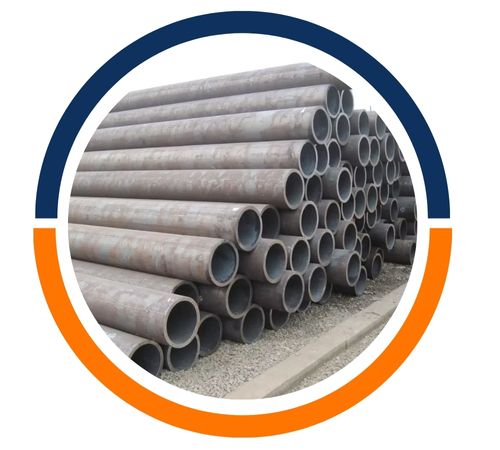

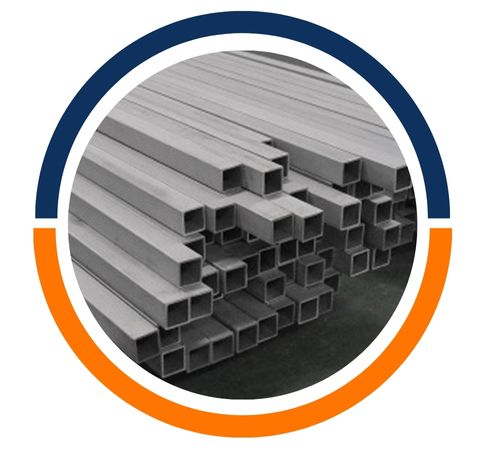

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| Specialized in | Large Diameter SA335 P12 |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Alloy Steel P12 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is a major manufacturer and a supplier of premium Alloy Steel P12 pipe in Hamilton, the New Zealand. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P12 | SA335 P12 | T12 | STPA 22 | K11562 | 3604 P1 620-440 | 17175 13CrMo44 | – | ABS 12 | KSTPA 22 | Sec 2 1Cr 1/2Mo440 |
| Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Sec 3 1Cr 1/2Mo440 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P12 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
You’ll typically find these pipes hard at work in demanding applications like power generation plants and refineries, where they form the backbone of high-temperature steam and process lines. Their reliable performance also makes them ideal for various industrial piping systems, carrying everything from oil and gas to other critical fluids. Essentially, wherever there’s a need for a pipe that can consistently perform under heat and pressure, Alloy Steel P12 provides a trusted and durable solution for keeping operations running smoothly.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
