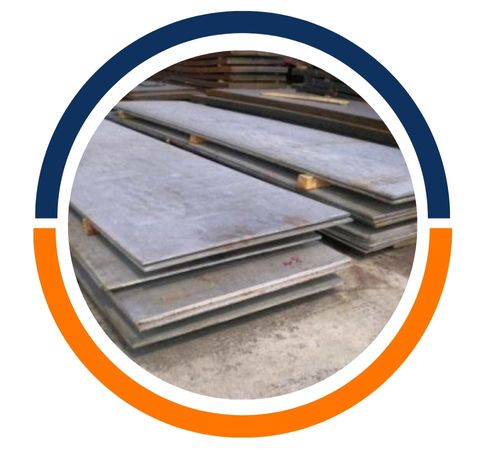

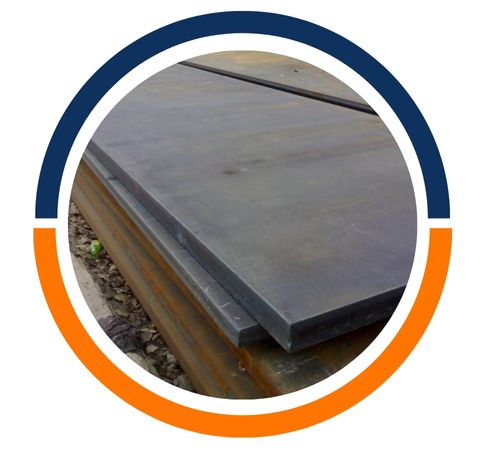

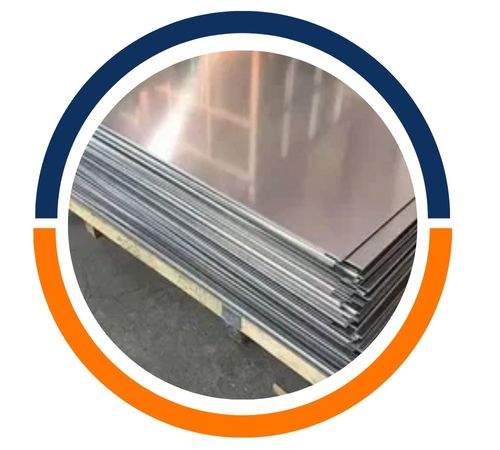

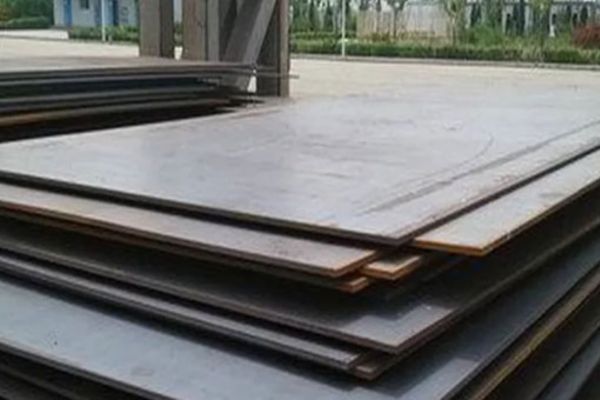

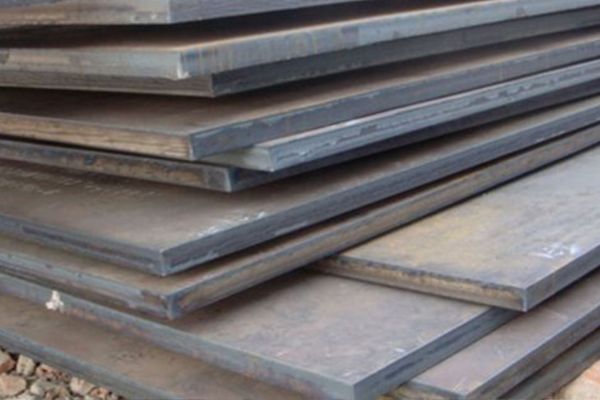

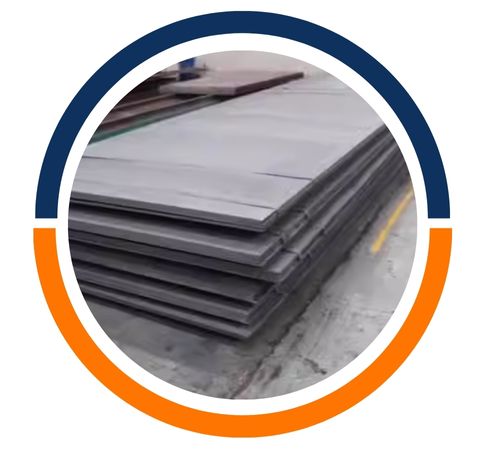

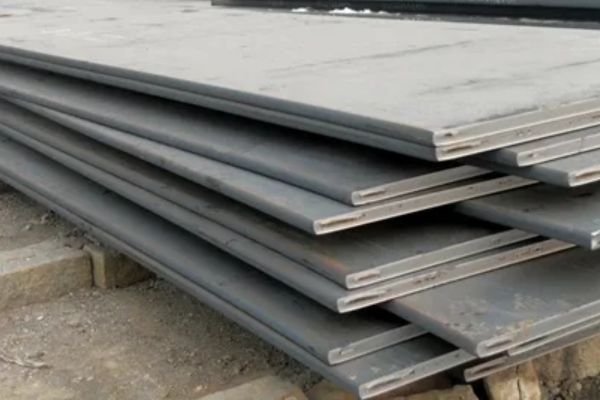

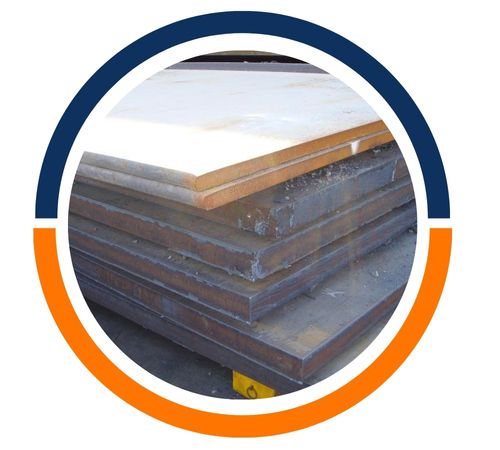

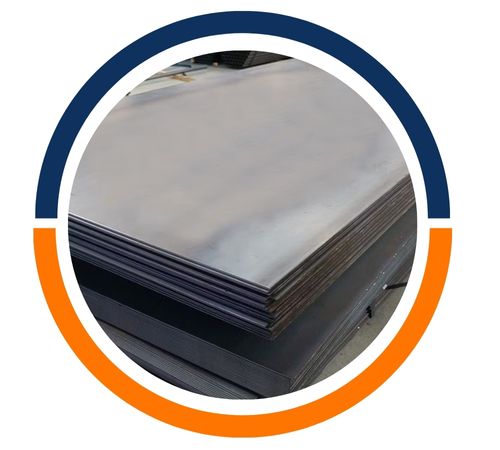

From the heart of Hamilton’s industrial landscape, Latham Steel has built a reputation as a trusted partner for high-strength steel solutions. We are proud to supply the robust Armour 500 sheet and plate, a product engineered to meet the most demanding challenges. This locally available material is designed for strength and longevity, offering our clients across New Zealand a reliable resource for projects where exceptional durability is not just a preference, but an absolute necessity.
The strength of Armour 500 comes from its specific composition and outstanding mechanical properties. This quenched and tempered steel achieves a minimum yield strength of 500 MPa, providing remarkable resistance to impact and abrasion. Its exceptional hardness, combined with good formability, means it can withstand punishing conditions that would quickly degrade lesser materials, making it a go-to choice for heavy-duty applications where wear and tear are primary concerns.
| C (max %) | Si (max %) | Mn (max %) | P(max %) | S(max %) | Cr (max %) | Ni (max %) | Mo (max %) | B (max %) |
| 0.35 | 0.70 | 1.50 | 0.015 | 0.010 | 1.0 | 2.0 | 0.70 | 0.005 |
| Thickness(mm) | Hardness(HBW) |
| 2.0 – 30 | 490 – 560 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is a top manufacturer and supplier of high-quality Armour 500 Sheet and Plates products in Hamilton, New Zealand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
| Product Type | Thickness(mm) | Tolerance (Min / Max) |
| Cut Length | 2.00 – 4.00 | – 0.0 / + 0.36 |
| Cut Length | 4.01 – 5.00 | – 0.0 / + 0.40 |
| Cut Length | 5.01 – 6.00 | – 0.0 / + 0.42 |
| Cut Length | 6.01 – 6.50 | – 0.0 / + 0.44 |
| Heavy Plate | 6.0 – 7.9 | – 0.0 / + 0.8 |
| Heavy Plate | 8.0 – 14.9 | – 0.0 / + 1.0 |
| Heavy Plate | 15.0 – 24.9 | – 0.0 / + 1.2 |
| Heavy Plate | 25.5 – 30.0 | – 0.0 / + 1.4 |
In practical terms, Armour 500 plate is the unsung hero in many tough environments. You’ll find it hard at work as liners in mining trucks and processing plants, as wear strips on heavy machinery, and in the construction of robust industrial bins and hoppers. Its resilience makes it ideal for protecting equipment from constant abrasion, essentially extending the life of valuable assets and reducing downtime for maintenance, which is a critical advantage in sectors like quarrying, forestry, and material handling.
