From Hamilton’s industrial heart, Latham Steel has built a reputation as a reliable local partner for quality steel components. We take pride in supplying robust Carbon Steel A105 Forged Fittings, trusted by industries across New Zealand. Sourced to meet rigorous international standards, these fittings are the backbone of dependable piping systems. We understand that your projects require durability you can count on, and our A105 range is selected with that exacting standard in mind, ensuring performance and longevity for the demanding conditions you face every day.
The strength of A105 fittings comes from their specific makeup. Primarily composed of carbon, manganese, and silicon, this material is forged, a process that enhances its inherent strength. This results in excellent tensile strength and good yield properties, allowing it to handle high pressure effectively. While not inherently corrosion-resistant, its toughness makes it ideal for a wide range of service conditions, particularly where mechanical stress is a primary concern rather than chemical attack.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

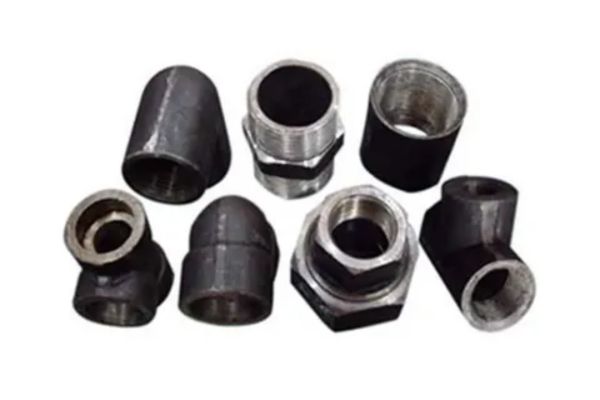

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

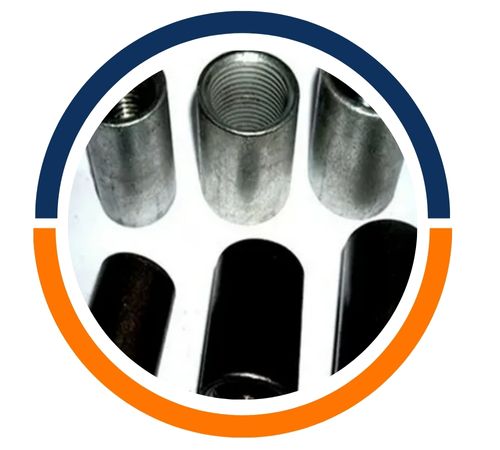

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
You’ll typically find these sturdy fittings hard at work in critical petrochemical, power generation, and water treatment plants, connecting valves and equipment in high-pressure piping systems. Their forged construction makes them a go-to choice for steam, water, oil, and gas services where integrity is non-negotiable. Essentially, they are used anywhere a secure, leak-proof connection is paramount, often serving in above-ground installations where their proven reliability helps keep essential infrastructure running smoothly and safely for years.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
