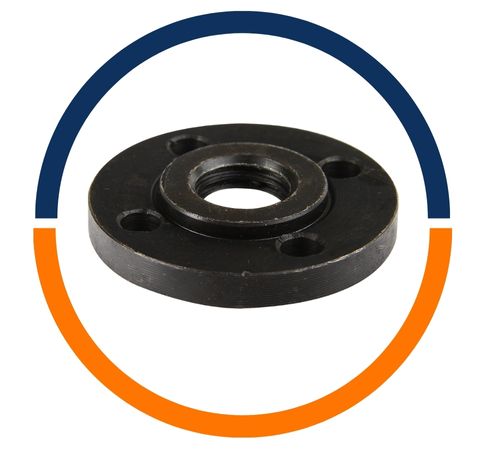

Nestled in the industrial heart of Hamilton, New Zealand, Latham Steel has built a strong reputation for reliability in the manufacturing sector. As a trusted local manufacturer and supplier, we specialize in producing robust Carbon Steel A182 Flanges, integral components for countless projects. Our commitment is to Hamilton’s growth, providing high-quality, locally-made products that meet the demanding needs of the region’s industries, from large-scale construction to essential infrastructure development. We pride ourselves on delivering not just a product, but a promise of durability and local expertise.
The composition of Carbon Steel A182 Flanges is a key reason for their widespread use. These flanges are primarily iron-carbon alloys, often enhanced with elements like manganese for increased strength. This specific composition gives them excellent mechanical properties, including high tensile strength and good impact resistance. They are designed to perform reliably under significant pressure and temperature, making them a dependable choice for creating strong, leak-proof connections in piping systems that need to handle demanding service conditions.
Specifications :Â ASTM A182 / ASME SA182
Dimensions :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ to 36″
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

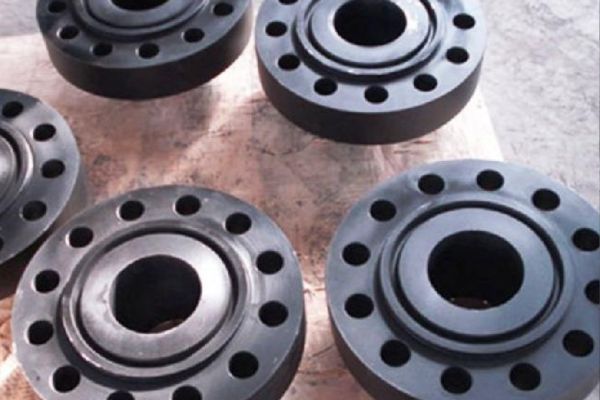

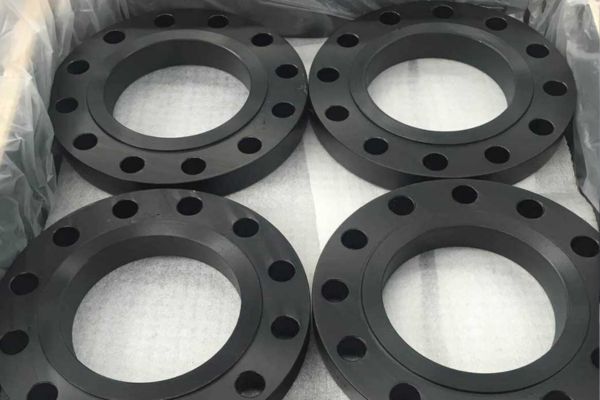

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A182 Flanges in Hamilton, New Zealand. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

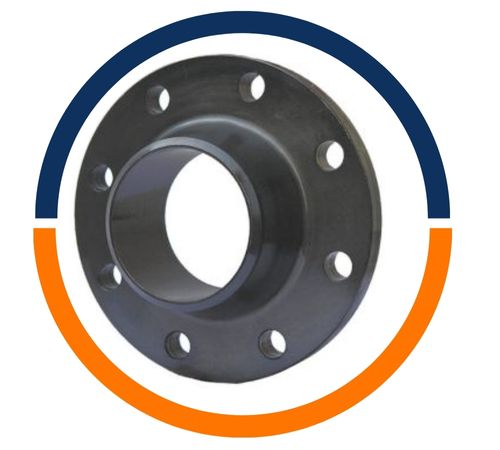

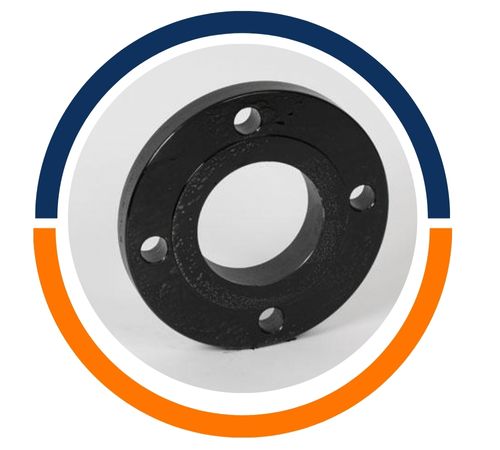

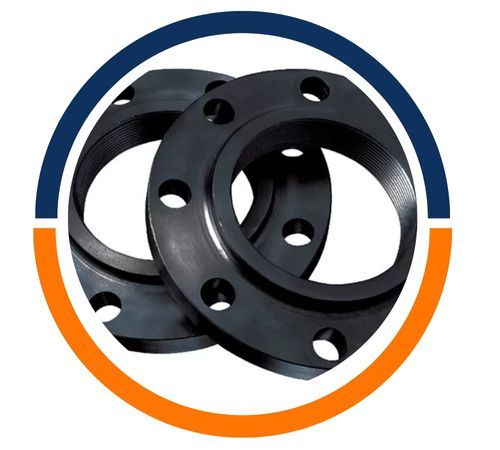

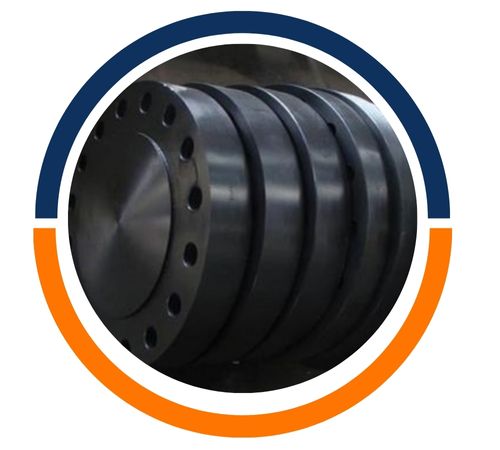

| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Size in inches | Outer Dia. | Size in millimeter | RF Height | Flange Thick. | RF Diam. | PCD | Bolt Size UNC | No of Bolts | Machine Bolt Lengths | Hole Size | RF Stud Length | ISO Stud Size | Weight in kg |
| Â | A | Â | D | B | C | E | Â | Â | Â | Â | Â | Â | Â |
| 1/2 | 90 | 15 | 2 | 9.6 | 34.9 | 60.3 | 1/2 | 4 | 50 | 5/8 | 55 | M14 | 0.9 |
| 3/4 | 100 | 20 | 2 | 11.2 | 42.9 | 69.9 | 1/2 | 4 | 50 | 5/8 | 65 | M14 | 0.9 |
| 1 | 110 | 25 | 2 | 12.7 | 50.8 | 79.4 | 1/2 | 4 | 55 | 5/8 | 65 | M14 | 0.9 |
| 1 1/4 | 115 | 32 | 2 | 14.3 | 63.5 | 88.9 | 1/2 | 4 | 55 | 5/8 | 70 | M14 | 1.4 |
| 1 1/2 | 125 | 40 | 2 | 15.9 | 73 | 98.4 | 1/2 | 4 | 65 | 5/8 | 70 | M14 | 1.8 |
| 2 | 150 | 50 | 2 | 17.5 | 92.1 | 120.7 | 5/8 | 4 | 70 | 3/4 | 85 | M16 | 2.3 |
| 2 1/2 | 180 | 65 | 2 | 20.7 | 104.8 | 139.7 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 3.2 |
| 3 | 190 | 80 | 2 | 22.3 | 127 | 152.4 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 4.1 |
| 3 1/2 | 215 | 90 | 2 | 22.3 | 139.7 | 177.8 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 5.9 |
| 4 | 230 | 100 | 2 | 22.3 | 157.2 | 190.5 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 7.7 |
| 5 | 255 | 125 | 2 | 22.3 | 185.7 | 215.9 | 3/4 | 8 | 85 | 7/8 | 95 | M20 | 9.1 |
| 6 | 280 | 150 | 2 | 23.9 | 215.9 | 241.3 | 3/4 | 8 | 85 | 7/8 | 100 | M20 | 11.8 |
| 8 | 345 | 200 | 2 | 27 | 269.9 | 298.5 | 3/4 | 8 | 90 | 7/8 | 110 | M20 | 20.5 |
| 10 | 405 | 250 | 2 | 28.6 | 323.8 | 362 | 7/8 | 12 | 100 | 1 | 115 | M24 | 32 |
| 12 | 485 | 300 | 2 | 30.2 | 381 | 431.8 | 7/8 | 12 | 100 | 1 | 120 | M24 | 50 |
| 14 | 535 | 350 | 2 | 33.4 | 412.8 | 476.3 | 1 | 12 | 115 | 1 1/8 | 135 | M27 | 64 |
| 16 | 595 | 400 | 2 | 35 | 469.9 | 539.8 | 1 | 16 | 115 | 1 1/8 | 135 | M27 | 82 |
| 18 | 635 | 450 | 2 | 38.1 | 533.4 | 577.9 | 1 1/8 | 16 | 125 | 1 1/4 | 145 | M30 | 100 |
| 20 | 700 | 500 | 2 | 41.3 | 584.2 | 635 | 1 1/8 | 20 | 140 | 1 1/4 | 160 | M30 | 130 |
| 24 | 815 | 600 | 2 | 46.1 | 692.2 | 749.3 | 1 1/4 | 20 | 150 | 1 3/8 | 170 | M33 | 196 |
You’ll find Carbon Steel A182 Flanges hard at work in a remarkable range of applications, forming the critical junctions in piping systems across numerous industries. They are essential in oil and gas pipelines, power generation plants, and large water treatment facilities. Their robustness also makes them perfect for chemical processing and heavy manufacturing, where they safely contain fluids and gases under high pressure. Essentially, in any situation requiring a sturdy and sealed connection for a pipe, these flanges are a go-to component for engineers and fabricators.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
