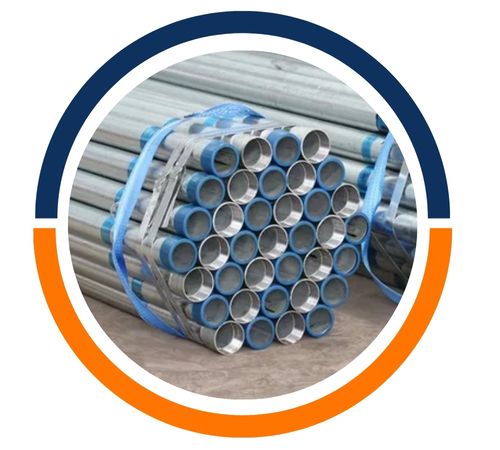

Situated in the heart of New Zealand’s industrial hub, Hamilton, Latham Steel has built a reputation as a trusted partner for robust and reliable steel solutions. We proudly supply the Carbon Steel EN 10210-1 Grade S275NH Pipe, a hot-finished hollow section engineered for demanding projects. Known for its excellent strength and weldability, this pipe is a cornerstone for construction and engineering across Aotearoa. Our team is dedicated to providing not just a product, but the knowledgeable support that ensures your visions are built on a foundation of quality and integrity.
The composition of EN 10210-1 S275NH pipe is carefully balanced to deliver dependable performance. Its chemical makeup, including controlled levels of carbon, manganese, and phosphorus, contributes directly to its mechanical properties. This specific grade is defined by a minimum yield strength of 275 MPa, offering a great balance between toughness and ease of fabrication. This combination means it can handle significant structural loads while still being straightforward to cut, weld, and form into the precise shapes your project requires.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |
| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Grade | S275NH |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.20 | max 0.40 | max 0.50-1.40 | 0.035 | 0.03 | max 0.10 | max 0.30 | max 0.30 | max 0.35 | V max 0.05 Al min 0.020 Nb max 0.05 Ti max 0.03 |
| Yield Strength | Tensile Strength | |||
|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min |
| 275 | 36000 | 370 | 530 | 36000 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Grade S275NH Pipe in Hamilton, New Zealand. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Grade S275NH Pipe needs.
| DIN | EN | BS | NFA | ASTM | ASME |
|---|---|---|---|---|---|
| DIN 17123/24/25 Grade FGS 28 | EN 10210-1 Grade S275NH | – | ASTM A 633 Grade A | ASME SA 633 Grade SA | – |
The versatility of S275NH pipe makes it a frequent choice for a huge range of applications. You’ll find it forming the strong, skeletal frames of modern buildings and commercial structures, as well as in essential support systems for bridges and industrial facilities. Beyond major construction, it’s perfectly suited for heavy-duty machinery frames, transport equipment, and a variety of architectural features. Its inherent strength and resilience ensure long-term reliability, making it a go-to material for engineers and fabricators who need a product that performs consistently under pressure.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
