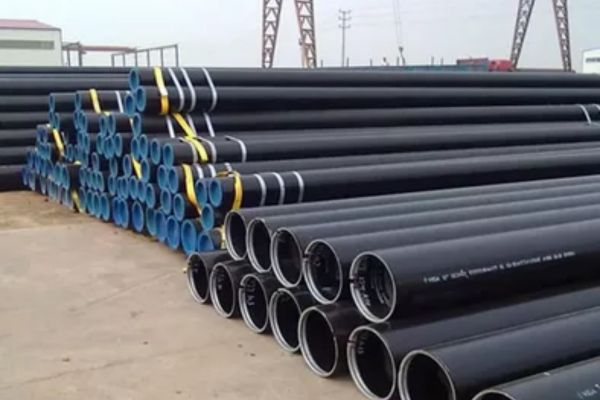

For manufacturers and industrial specialists in Hamilton and beyond, Latham Steel stands as a reliable source for top-grade materials. We are proud to supply the Carbon Steel EN 10216-2 Pipe, a product engineered to meet the rigorous demands of high-pressure environments. Sourced with the quality you expect from a Hamilton-based supplier, this pipe is a cornerstone for projects where integrity and durability are simply non-negotiable, ensuring your systems are built on a foundation of trusted performance.
The makeup of this carbon steel pipe is carefully balanced, primarily iron with precise additions of manganese, silicon, and carbon. This specific composition gives the material its notable mechanical strength, allowing it to handle significant internal pressure and stress. It’s this reliable combination of toughness and structural integrity that makes it such a trusted choice for engineers who need a material that won’t let them down under demanding operational conditions.
| Standard | : | EN 102ie-2 |
| EN 10216 Steel Pipe Materials | : | P195GH, P235GH, P265GH |
| EN 10216 Steel Pipe Outside Diameter | : | 10.2mm – 711mm |
| EN 10216 Steel Pipe Wall Thickness | : | 1.6mm – 100mm |
| EN 10216 Steel Pipe Delivery Conditon | : | Normalized |
| EN 10216 MOQ | : | 2 Tons per size |
| EN 10216 Pipe Shippment | : | 20’GP/40’GP/40’HQ FCL or LCL |
| EN 10216 Pipe Delivery | : | Depends on the stock availability and actual order quantities. |
| Steel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| EN P195GH | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P235GH | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P265GH | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| 16Mo3 | 0,12- 0,20 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30 | 0,25- 0,35 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 14MoV6-3 | 0,10- 0,15 | 0,15- 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30- 0,60 | 0,50- 0,70 | 0,30 | >\= 0,020 | 0,30 | – | 0,22-0,28 | – | – |
| 13CrMo4-5 | 0,15 | 0,50- 1,00 | 0,30- 0,60 | 0,025 | 0,020 | 1,00- 1,50 | 0,45- 0,65 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 10CrMo9-10 | 0,10- 0,17 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,70- 1,15 | 0,40- 0,60 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| Mechanical properties | |||||||||||||
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 | Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<\=16 | 16<T<\=40 | 40<t<\=60 | 60<T<\=60 | I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| EN P195GH | 195 | – | – | – | 320- 440 | 27 | 25 | – | 40 | 28 | – | 27 | |
| EN P235GH | 235 | 225 | 215 | – | 360- 500 | 25 | 23 | – | 40 | 28 | – | 27 | |
| EN P265GH | 265 | 255 | 245 | – | 410- 570 | 23 | 21 | – | 40 | 28 | – | 27 | |
| 16Mo3 | 280 | 270 | 260 | – | 450- 600 | 22 | 20 | 40 | – | – | 27 | – | |
| 14MoV6-3 | 320 | 320 | 310 | – | 460- 610 | 20 | 18 | 40 | – | – | 27 | – | |
| 13CrMo4-5 | 290 | 290 | 280 | – | 440- 590 | 22 | 20 | 40 | – | – | 27 | – | |
| 10CrMo9-10 | 280 | 280 | 270 | – | 480- 630 | 22 | 20 | 40 | – | – | 27 | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10216-2 Pipe products in Hamilton, New Zealand. Specializing in premium steel materials, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure outstanding performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10216-2 Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
You’ll find this pipe hard at work in some of industry’s most critical roles. It’s ideally suited for constructing high-pressure piping systems that carry steam, oil, and gas, as well as for building robust boilers and superheater systems. Its proven performance makes it a go-to material for the energy sector, chemical plants, and various large-scale infrastructure projects where safety and long-term reliability are the highest priorities for a successful installation.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
