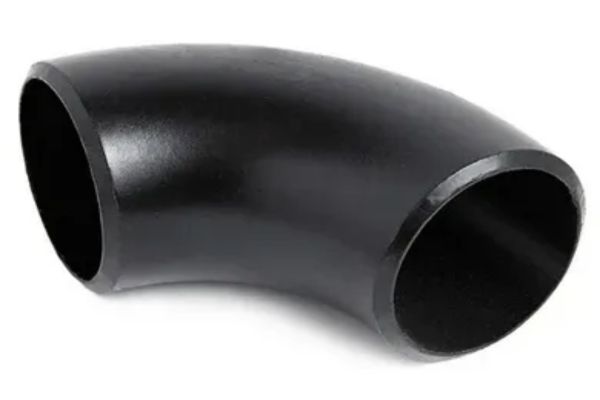

From the heart of Hamilton’s industrial landscape, Latham Steel has built a reputation as a trusted partner for high-quality steel solutions. We are proud to supply and manufacture robust Carbon Steel WPHY 52 Pipe Fittings, engineered to meet the demanding challenges of modern infrastructure. Our commitment lies in providing durable, reliable components that form the essential connections in critical systems, supporting industries across New Zealand and beyond with locally sourced expertise and a steadfast dedication to excellence.
The strength of WPHY 52 fittings lies in their carefully balanced composition and performance. Primarily composed of carbon manganese steel, they are heat-treated to achieve a high yield strength of 52,000 psi, which gives them exceptional resistance to deformation under heavy loads. This high-strength characteristic is paired with good toughness and ductility, allowing the fittings to withstand not just constant pressure but also the impacts and vibrations commonly encountered in tough industrial environments.
Specifications : A- 860 or MSS SP75
Standard : ASTM A860 / ASME SA860
Size : ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedules :Sch.40 to Sch.XXs
Type : Seamless / Welded / Fabricated
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| WPHY 52 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| WPHY 52 | 515-690 | 66 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

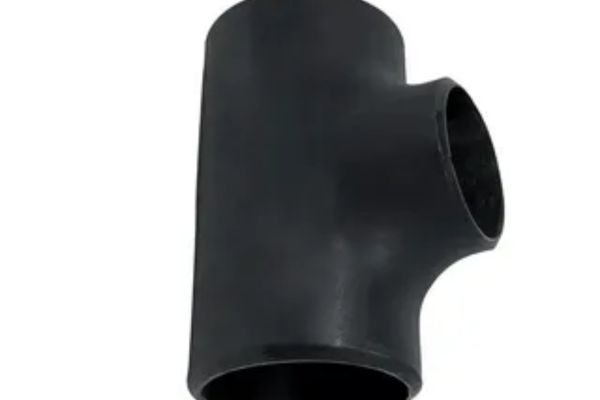

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Latham Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 52 Pipe Fittings products in Hamilton, New Zealand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These high-strength fittings are essential in systems where reliability is non-negotiable. You will find them forming crucial connections in oil and gas transmission pipelines, high-pressure process plants, and major power generation facilities. They are equally vital in large-scale structural applications and demanding industrial plumbing, expertly handling the conveyance of water, oil, gas, and steam under significant pressure, ensuring the integrity and safety of the entire network.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
