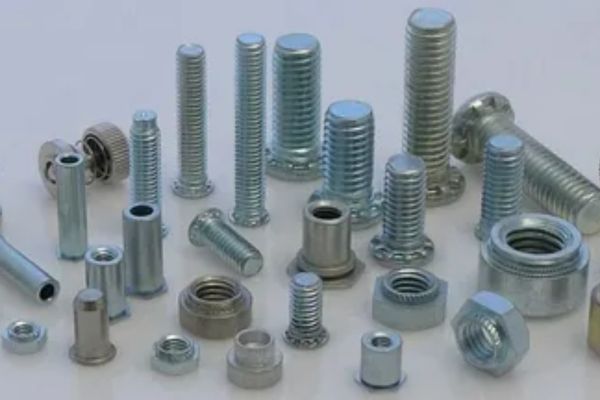

Based in Hamilton, Latham Steel has built a strong reputation as a trusted local source for industrial strength. Our deep understanding of New Zealand’s demanding sectors is perfectly matched by our supply of Alloy Steel Gr B7M Fasteners. This specific grade is a cornerstone for projects where reliability and safety are absolutely critical, particularly in environments that present unique challenges. We’re proud to provide these essential components to the very industries that power our community, ensuring local projects are built to the highest standards of integrity and performance.
The strength of Alloy Steel Gr B7M Fasteners comes from a careful balance. Their chemical composition, including elements like chromium and molybdenum, provides the raw potential for high tensile strength. The real advantage, however, is achieved through a specialized heat treatment. This process carefully tempers them to a harder, more resilient state while strictly controlling their final hardness. This results in components that are incredibly strong yet possess a controlled hardness, which is a key feature for many critical applications where toughness is more important than just being hard.
Specification :Â ASTM A 193 ASME SA 193
Standard :Â DIN, ASTM, BS and all International Standards
Length :Â 3 mm to B7M mm
Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes

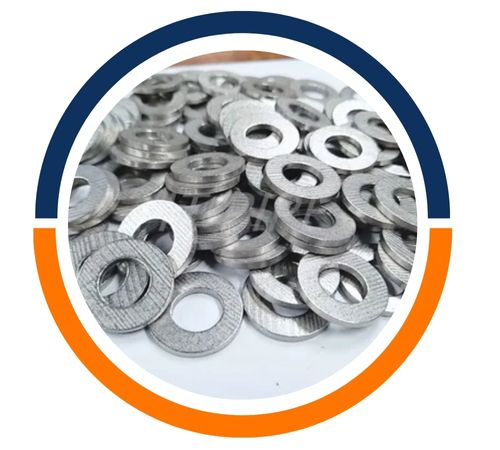

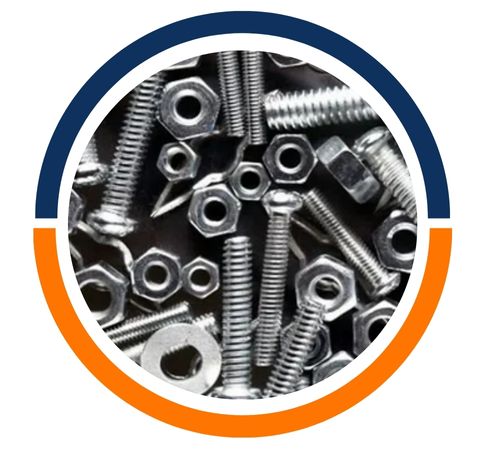

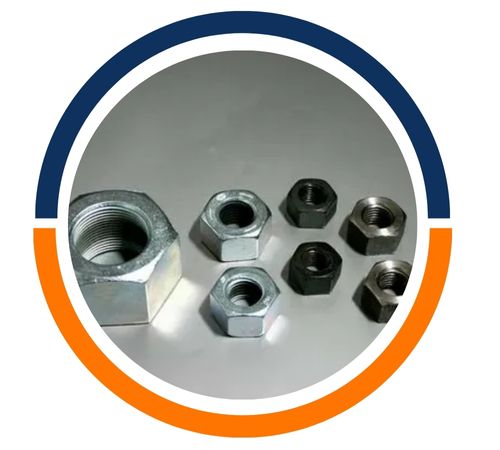

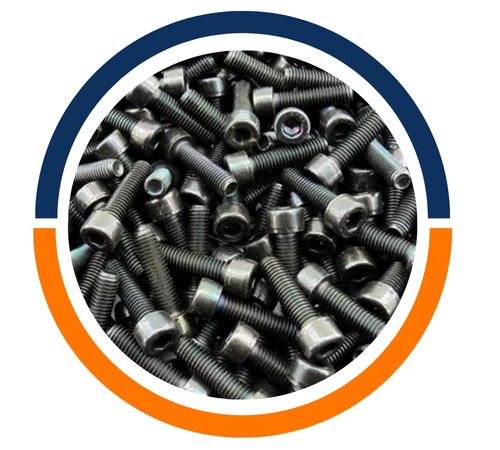

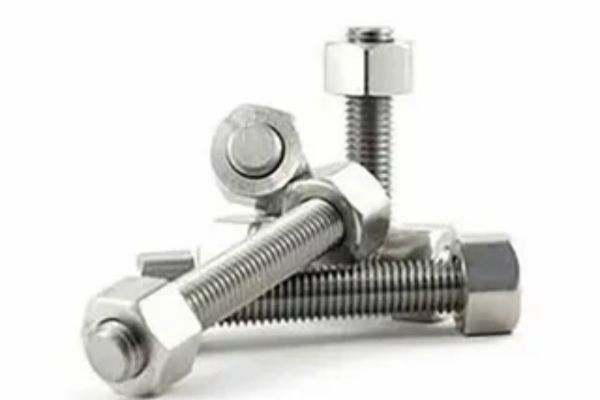

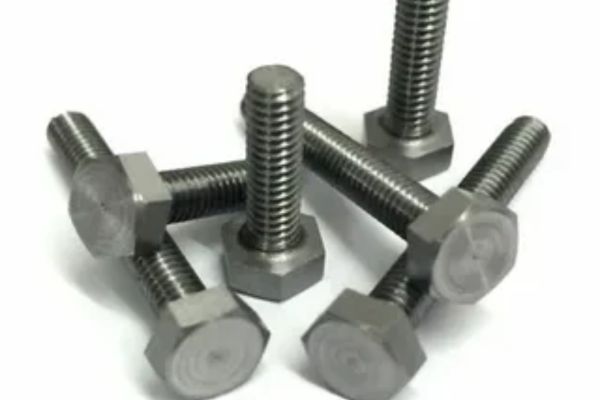

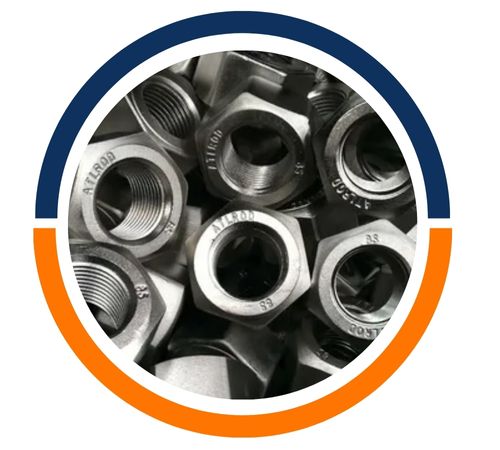

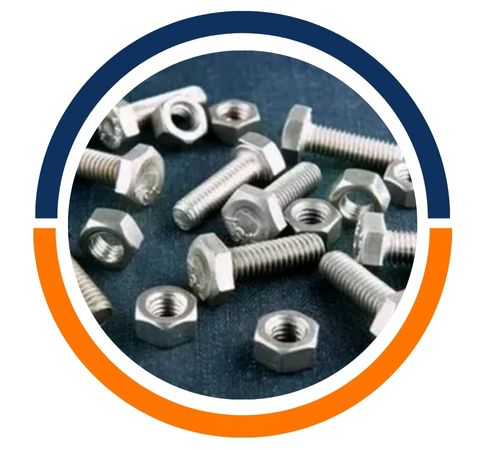

Types :Â Nuts, Bolts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Socket Head Cap Screw, Washers, Spring Washers, Studs, Anchors
| Alloy Steel B7M | C | Mn | P | S | Si | Cr | Mo |
| 0.37-0.49 | 0.65-1.10 | 0.035 Max | 0.04 Max | 0.15-0.35 | 0.75-1.20 | 0.15-0.25 |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
|---|---|---|---|---|---|
| B7M | Up to 2-1/2 | 125 | 105 | 16 | 50 |
| 2-5/8 – 4 | 115 | 95 | 16 | 50 | |
| 4-1/8 – 7 | 100 | 75 | 18 | 50 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Hexagon Bolts / Set Screws |
Stud Bolts |
Hexagon Nuts |
Socket Capscrews |
|---|---|---|---|
|
DIN 931 |
BS4882 |
DIN 934 |
DIN 912 |
|
DIN 933 |
DIN 976 |
BS 1768 |
DIN 6912 |
|
BS 1768 |
BS 1769 |
DIN 7984 |
|
|
UNI 5731 |
BS 1083 |
ANSI B18.3 |
|
|
UNI 5739 |
BS 3692 |
ISO 4762 |
|
|
ISO 4014 |
ISO 4032 |
UNI 5931 |
|
|
ISO 4017 |
ISO 4033 |
BS 2470 |
|
|
BS 1769 |
ANSI B18.2.2 |
BS 4168 |
|
|
BS 3692 |
|||
|
ANSI B18.2.1 |
|||
|
Socket & Slotted Set Screws |
Socket & Slotted Countersunk Screws |
Studs |
Washers |
|
DIN 913 |
DIN 963 |
DIN 938 |
DIN 125 |
|
DIN 914 |
DIN 7991 |
DIN 939 |
DIN 9021 |
|
DIN 915 |
BS 4168 |
DIN 2510 |
BS 4320 |
|
DIN 916 |
BS 1981 |
BS 4439 |
BS 3410 |
|
DIN 551 |
BS 483 |
BS 2693 |
|
|
DIN 553 |
BS 2470 |
Spring Washers |
|
|
DIN 438 |
DIN 127 |
||
|
BS 4168 |
BS 4464 |
||
|
BS 1802 |
You’ll typically find Alloy Steel Gr B7M Fasteners in some of the most challenging industrial settings. They are essential in high-temperature and high-pressure environments, such as valves, flanges, and piping systems within power generation and oil and gas facilities. Their controlled hardness makes them particularly valuable for sour service applications, where they resist sulfide stress cracking. Essentially, they are the go-to choice for bolting critical equipment together in situations where a standard fastener simply wouldn’t hold up to the intense pressure and corrosive conditions.
