Located in the heart of Hamilton’s industrial sector, Latham Steel has built a reputation as a trusted manufacturer and supplier of robust steel solutions. We take particular pride in producing our API 5L Grade B PSL1 pipe, a fundamental component crafted to meet the demanding needs of various sectors. This pipe represents our commitment to delivering reliable, high-quality materials that form the backbone of critical infrastructure and industrial projects, providing strength and durability you can count on from a local New Zealand source.
The composition of this pipe is a carefully balanced carbon-manganese steel, designed for reliable performance. Its mechanical properties are what make it a go-to choice, offering a specified minimum yield strength of 35,000 psi, which ensures it can handle significant pressure and stress. This combination of strength and ductility makes the pipe tough yet workable, suitable for a range of fabrication and installation requirements while consistently adhering to the established API 5L standard.
| API 5l Gr B Psl2 ERW and HFW | 1/2” NB – 24” NB |
| API 5L Gr B SAW | 16″ – 100″ NB |

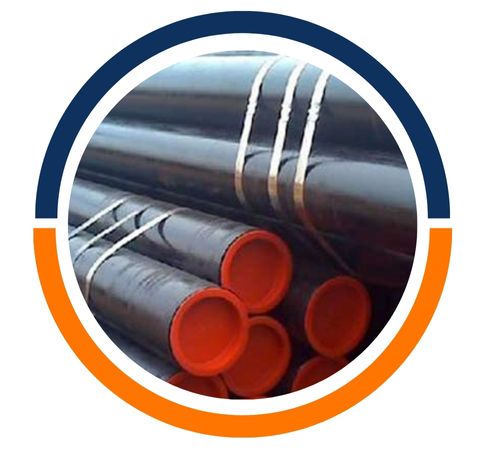

| API 5L Grade B Psl1 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |

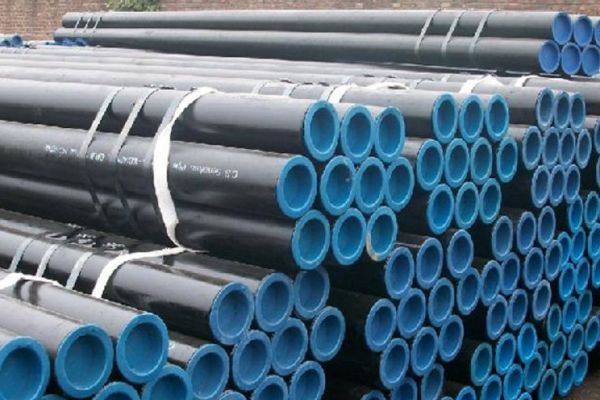

| API 5L Grade B Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2″ – 26″) |
| OD | 21.3MM ~ 762MM |
| Killed Carbon Steel API 5L Pipe end | BOE-Beveled One End TOE -Treaded One End, BE -Beveled end, BLE -Bevel large end, BSE -Bevel small end, TBE -Treaded Both Ends, BBE -Bevel both ends, POE -Plain One End, PBE -Plain Both Ends, API 5L Grade B Welded Pipe |
| Wall Thickness of API 5L Grade B Pipe | 4.5mm to 60mm |
| API 5L Grade B Material Cutting Techniques | Sawing, Laser, Burrless Cuts, Tapping, Water-Jet, API 5L Gr B Nace Pipe |
| Different methods used by API 5L Grade B Pipe manufacturers’ | Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), 100% X Ray/ Gamma Ray Welded Welded, CDW, Submerged Arc Welded (SAW), Extrusion, Fabricated, Seamless, Electro Fusion Seam Welded (EFSW), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW), Hot Finish Seamless (HFS), API 5L Grade B Schedule 80 Pipe |
| Surface Treatment of API 5L Grb Pipe |
|
| Pipe API 5L Gr B Schedule | SCH-40, SCH-80S, SCH-40S, SCH-10S, SCH-5, SCH-80, SCH160, SCH-XS, SCH-STD, SCH-5S, SCH-10, SCH-XXS, API 5L Gr B Smls Pipe |
| L245 Grade B Pipe Length | 12000mm, 20FT, Single Random Length (SRL), 6000mm, 40FT, DRL, Double Random Length (DRL), 2000mm, Custom Length SRL, 3000mm, API 5L Gr.B PSL2- SAW Pipes |
| Chemical Composition % | ||||||||
| PSL1 | PSL2 | |||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| A | 0.22 | 0.90 | 0.03 | 0.03 | 0.22 | 1.20 | 0.025 | 0.015 |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| X42 | 0.26 | 1.30 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X46 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X52 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X56 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X60 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.45 | 0.025 | 0.015 |
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 0.22 | 1.65 | 0.025 | 0.015 |
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 0.22 | 1.85 | 0.025 | 0.015 |
| PSL 1 | |||||
|---|---|---|---|---|---|
| Grade | Tensile Strength(Min.) | Yield Strength(Min.) | Elongation | ||
| MPa | Ksi | MPa | Ksi | E=1944 A 0.2 /U 0.9 | |
| B | 414 | 60 | 241 | 35 | |
| X52 | 455 | 66 | 359 | 52 | |
| X60 | 434 | 63 | 414 | 60 | |
| X65 | 455 | 66 | 448 | 65 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is a top manufacturer and supplier of high-quality API 5L Grade B PSL1 Pipe products in Hamilton, New Zealand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
This versatile pipe finds its purpose in a wide array of essential applications. It is most commonly used for gathering and transporting oil and natural gas, serving as a critical link in energy supply chains. Beyond that, you’ll find it in vital water transmission lines, structural piling for foundations, and various industrial process systems. Its dependable strength makes it ideal for projects where integrity under pressure is non-negotiable, forming safe and durable conduits for fluids and gases across different industries.
