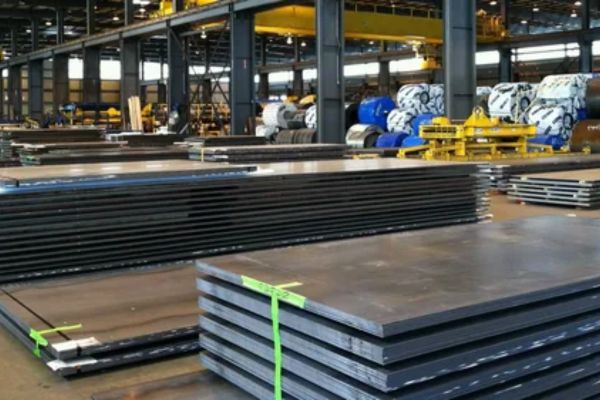

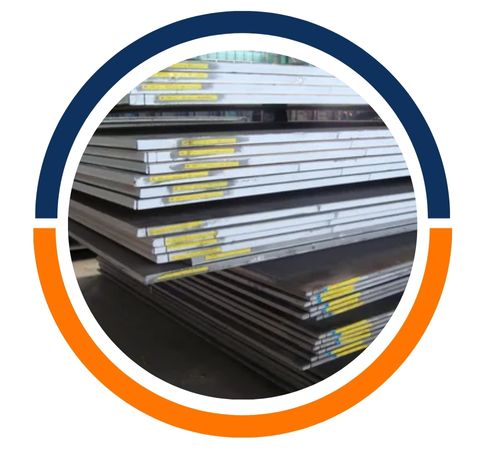

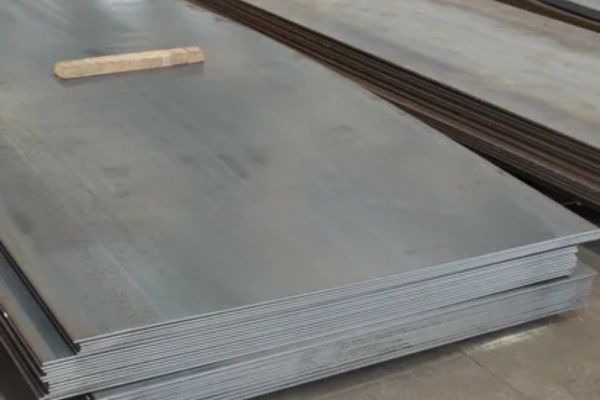

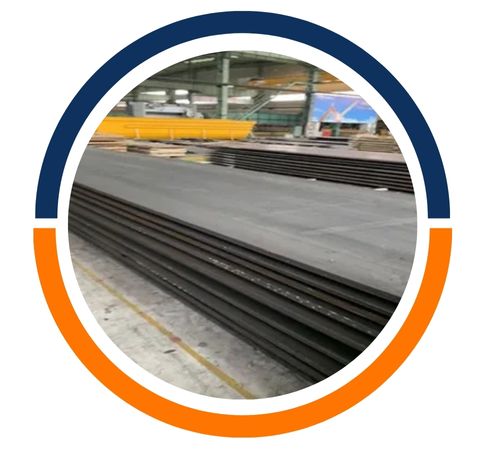

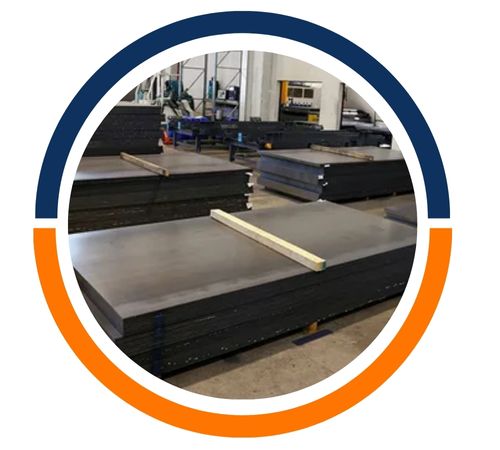

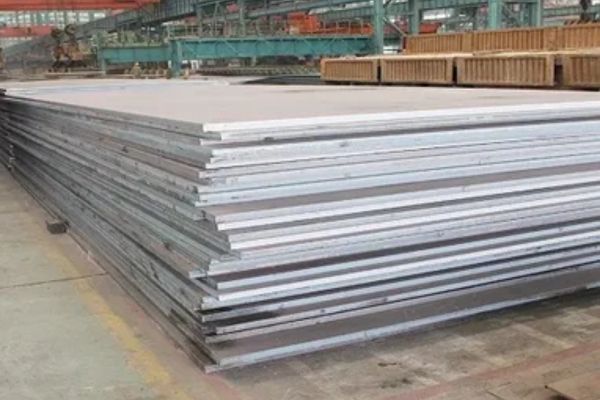

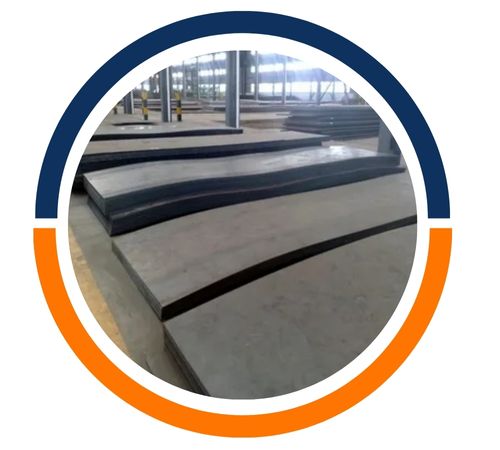

Latham Steel, a prominent manufacturer and supplier based in Hamilton, New Zealand, specializes in high-quality SA 516 Grade 70 sheets and plates. These products are specifically designed for medium to high-pressure and elevated-temperature applications. This particular carbon steel grade is a go-to choice for fabricating boilers, pressure vessels, and heat exchangers, thanks to its remarkable toughness, weldability, and thermal stability. Latham Steel is committed to ensuring precise dimensional accuracy, consistent mechanical properties, and adherence to ASTM A516 standards. With SA 516 Grade 70, you can count on reliable performance even under high stress and fluctuating temperatures, making it a top pick for refineries, petrochemical plants, power generation units, and industrial processing equipment.
SA 516 Grade 70 is composed of carefully controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. It boasts a minimum yield strength of about 260 MPa and impressive tensile strength ranging from 485 to 620 MPa. This steel grade exhibits excellent notch toughness, particularly when normalized, and maintains stable mechanical performance even at elevated temperatures. With the right welding techniques, it offers good weldability, uniform hardness, and reliable ductility. Its well-balanced composition ensures strong resistance to brittle fracture and deformation, making SA 516 Grade 70 an ideal choice for pressure vessels and high-temperature industrial equipment.
Grade :Â ASME SA 516 GR.65 Boiler and Pressure Vessel Steel Plates
Width :Â 1250mm-3000mm
Thickness : 3 – 200 mm/ dimensions up to 4.000 mm
Length :Â 3000mm-11000mm.
Production :Â Hot-Rolled (HR)
Heat Treatment :Â Rolled/Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Tensile strength (MPa) | Yield strength (ksi) | Yield strength (MPa) | Elongation in 200mm (min)(%) | Elongation in 50mm (min) (%) |
| 65-85 | 450-585 | 35 | 240 | 19 | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA 516 Grade 70 sheets and plates find extensive use in the fabrication of boilers, pressure vessels, steam drums, and heat exchangers that operate under high temperatures and internal pressure. They are commonly utilized in oil and gas refineries, chemical processing facilities, thermal power plants, and industrial heating systems. This grade is particularly suitable for equipment that experiences thermal cycling, such as furnace components and high-temperature storage tanks. With its robust mechanical properties and excellent corrosion resistance, SA 516 Grade 70 is a reliable option for long-term service in demanding environments.
