For over forty years, Latham Steel in Hamilton has been the trusted local source for industrial and architectural materials, forging a reputation built on reliability and expert knowledge. We are particularly proud to supply Corten Steel S355J2W, a material that perfectly embodies New Zealand’s rugged character. This exceptional steel is designed to develop a stable, self-protecting rust layer when exposed to the elements, making it an ideal choice for projects that demand both enduring strength and a distinctive, weathered aesthetic right from the start.
The strength of S355J2W lies in its specific composition and performance. The steel is alloyed with elements like copper, chromium, and nickel, which work in concert to form a dense, adherent patina that halts further corrosion. This protective barrier allows it to withstand harsh weather far better than standard steel. Mechanically, it offers a minimum yield strength of 355 MPa, ensuring exceptional structural integrity and load-bearing capacity for demanding applications where longevity is non-negotiable.

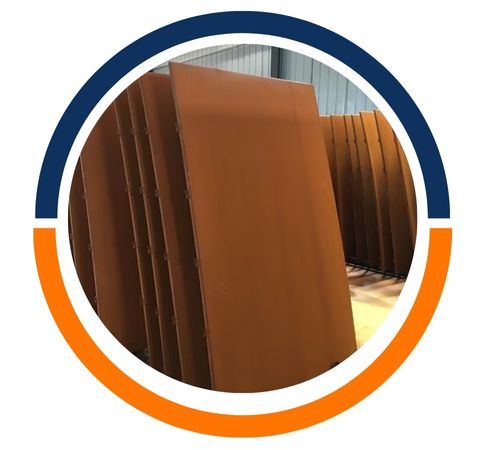

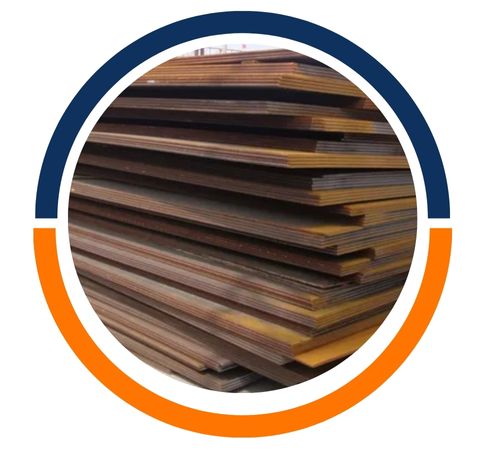

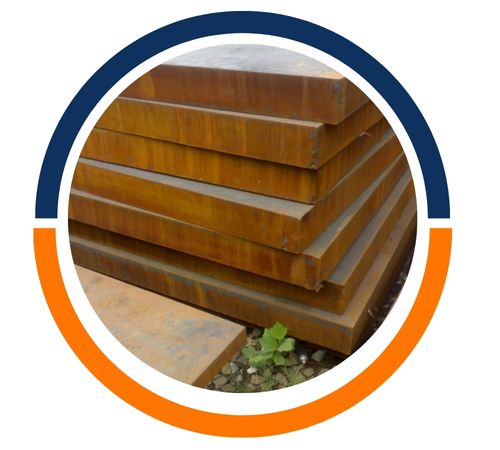

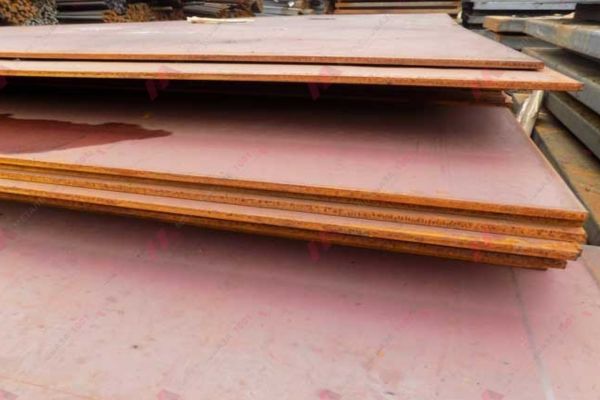

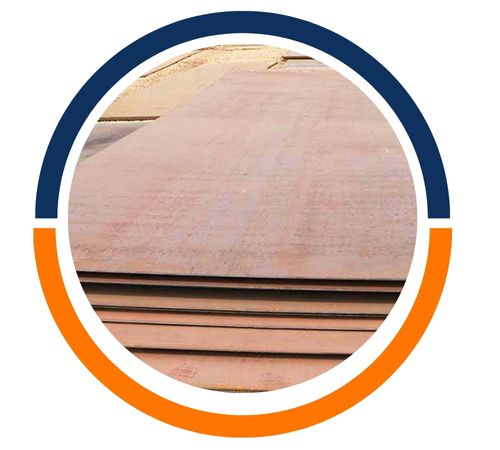

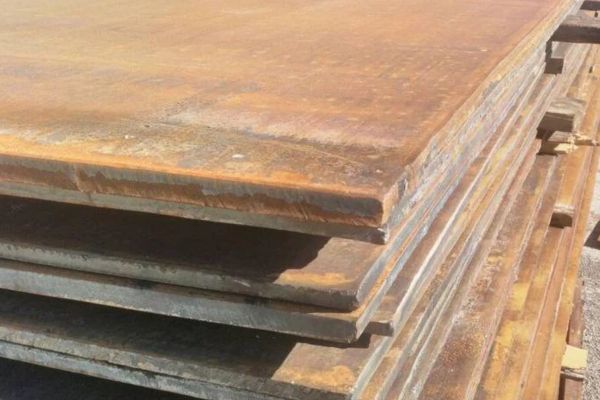

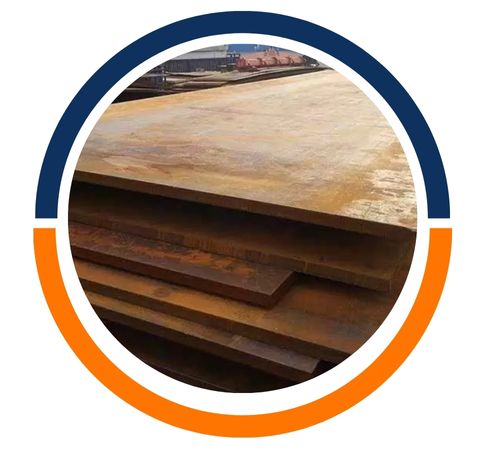

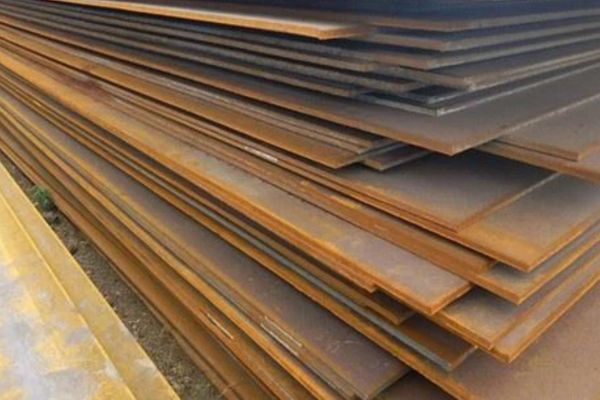

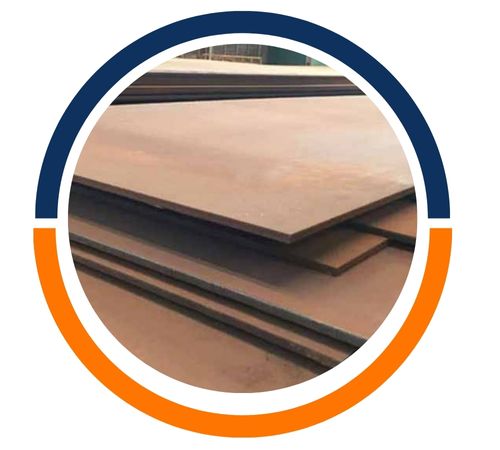

Grade : S355J2W Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Grade | C max | Si max | Mn max | P max | S max | N max | Cr max | Cu max |
| S355J2W | 0.16 | 0.50 | 0.50-1.50 | 0.030 | 0.035 | – | 0.40-0.80 | 0.25-0.55 |
| Grade | Min Yield strength in different thickness | Min tensile strength in different thickness | Elongation in different thickness | ||||||||||||||
| S355J2W | ≤ 16 | > 16 ≤ 40 | > 40 ≤ 63 | > 63 ≤ 80 | > 80 ≤ 100 | > 100 ≤ 150 | ≤ 3 | > 3 ≤ 100 | > 100 ≤ 150 | ≤ 1.5 | > 2 ≤ 2.5 | > 2.5 ≤ 3 | > 3 ≤ 40 | > 40 ≤ 63 | > 63 ≤ 100 | > 100 ≤ 150 | |
| 355 | 345 | 335 | 325 | 315 | 295 | 510- 680 | 470- 630 | 450-600 | 16 | 17 | 18 | 22 | 21 | 20 | 18 | ||
| Grade | DIN |
| S355J2W | 1.8965 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The unique character of Corten Steel S355J2W makes it incredibly versatile. Beyond its traditional use in bridges and large-scale structural frames, it has become a favourite for architectural expression. You will see it adding a warm, industrial elegance to building facades, sculptural gardens, retaining walls, and distinctive public art installations throughout New Zealand. Its ability to survive our coastal and alpine environments with minimal maintenance also makes it perfect for marine barriers, transmission towers, and other essential infrastructure that must endure for generations.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
