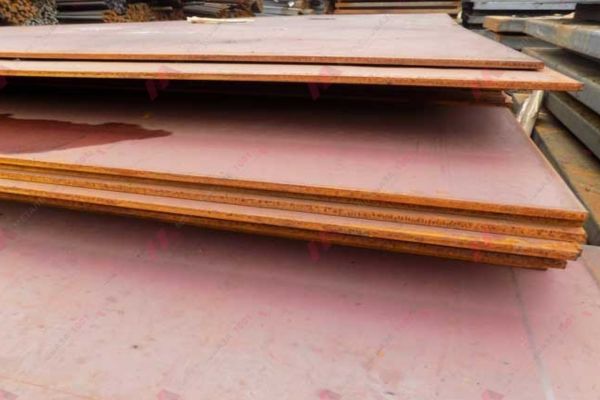

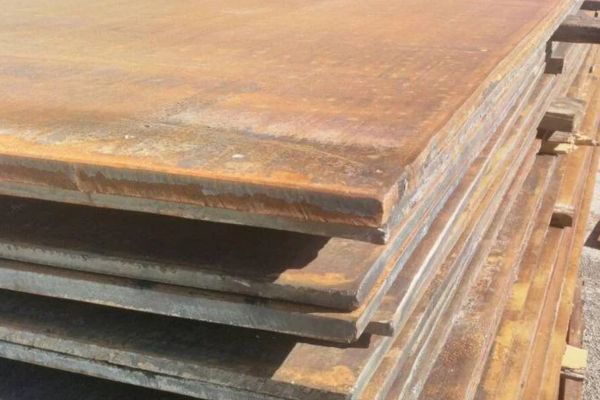

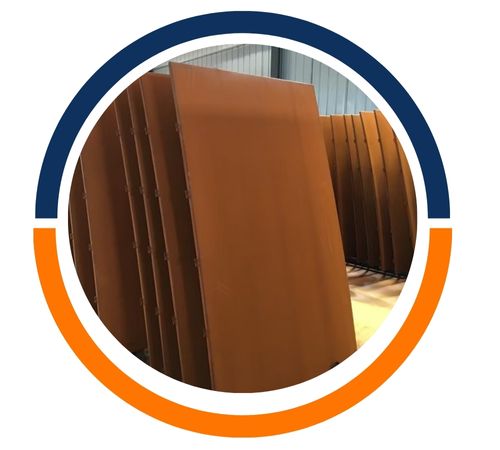

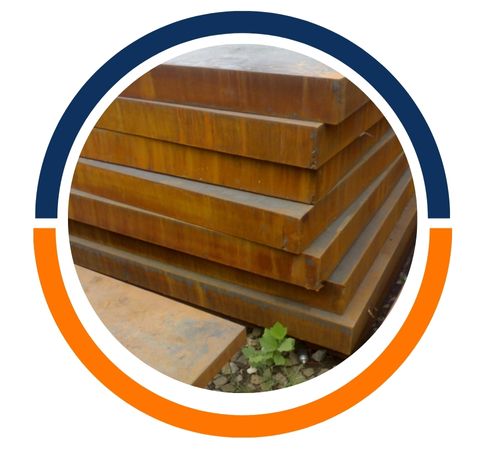

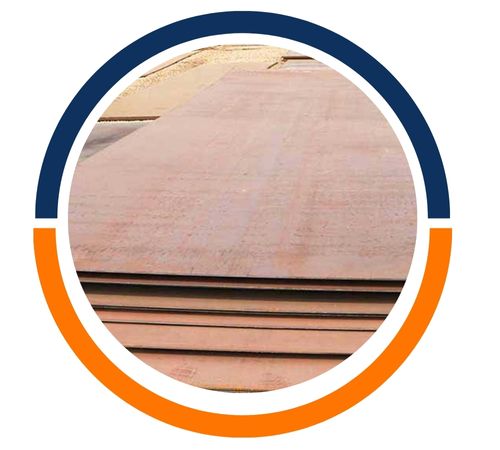

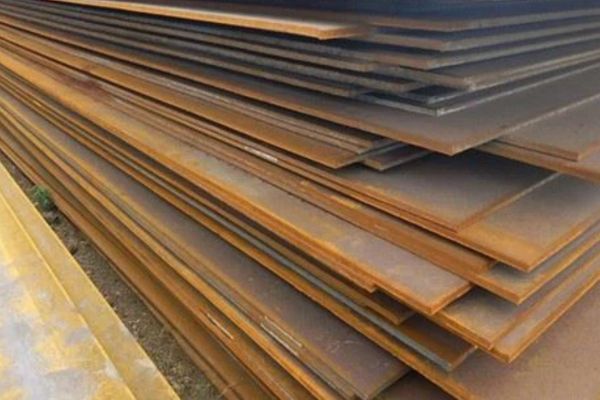

From the heart of Hamilton, New Zealand, Latham Steel stands as a trusted partner for industrial and construction needs, proudly supplying the distinct and durable Corten Steel S355JOW sheet and plate. We understand that the right material forms the backbone of any lasting project, which is why we offer this exceptional weathering steel, known for its unique character and resilience. Our team is dedicated to providing not just a product, but a reliable material solution that will perform beautifully for years to come.

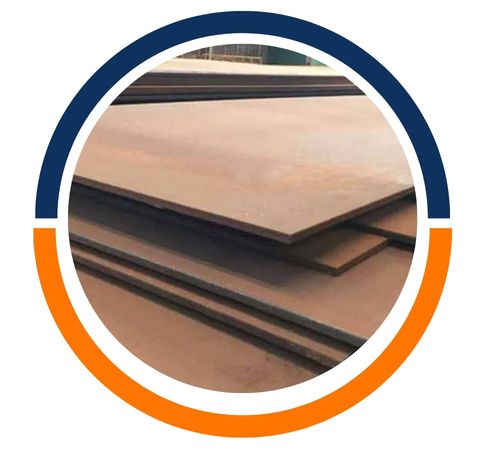

The composition of Corten Steel S355JOW is specifically engineered to develop a protective, self-healing rust layer when exposed to the elements. This atmospheric corrosion resistance is paired with impressive mechanical properties, including a minimum yield strength of 355 MPa, ensuring excellent structural integrity. It’s a steel that is designed to be tough and long-lasting, capable of withstanding significant stress and harsh weather conditions without the need for constant painting or maintenance, making it a truly practical choice.

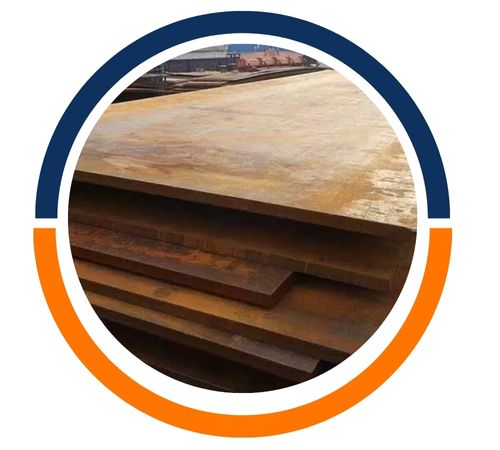

Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel

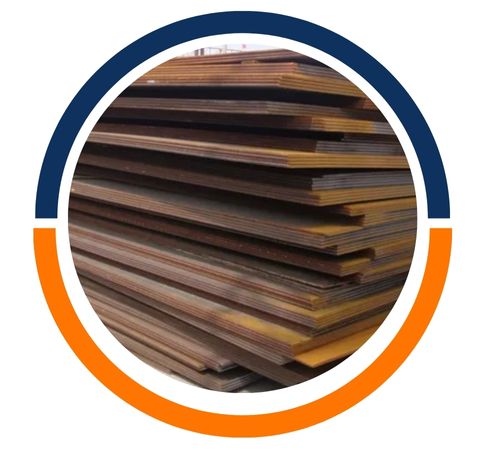

Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The uses for this versatile steel are as broad as the New Zealand landscape itself, finding a perfect home in both functional and artistic applications. It is ideal for striking architectural facades, robust bridges, and sculptural installations where its evolving patina becomes a design feature. Beyond aesthetics, it’s widely used for heavy-duty containers, industrial chimneys, and coastal structures, where its resistance to salt spray is invaluable. Essentially, it’s the go-to material for projects that demand a combination of raw strength, low upkeep, and a uniquely beautiful, natural finish.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
