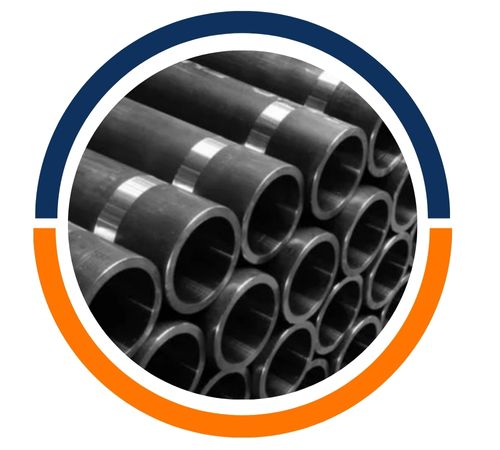

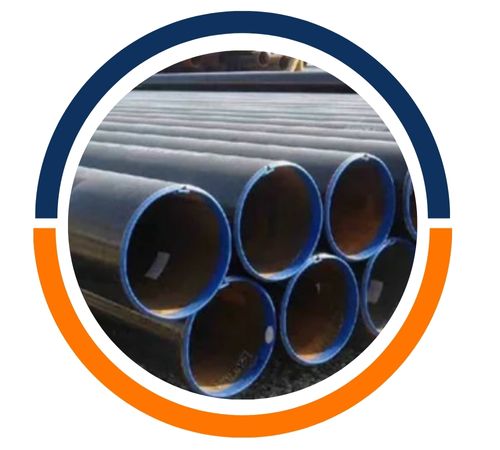

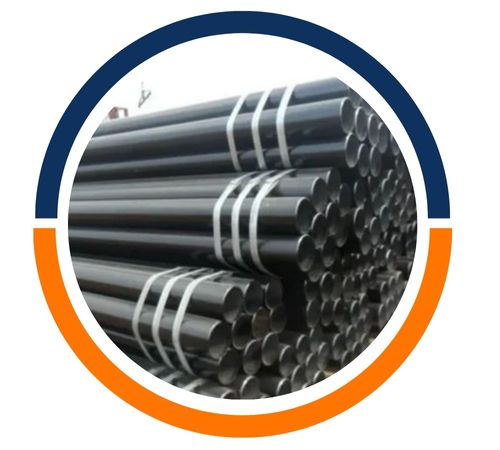

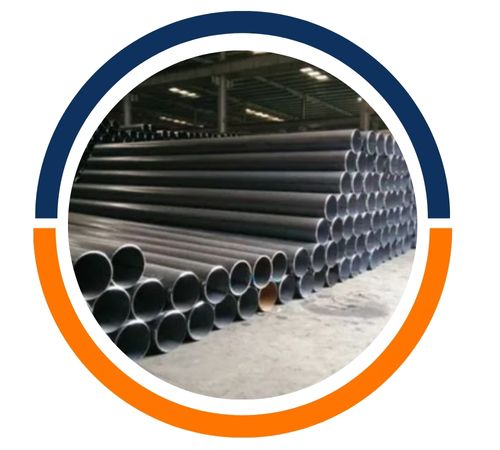

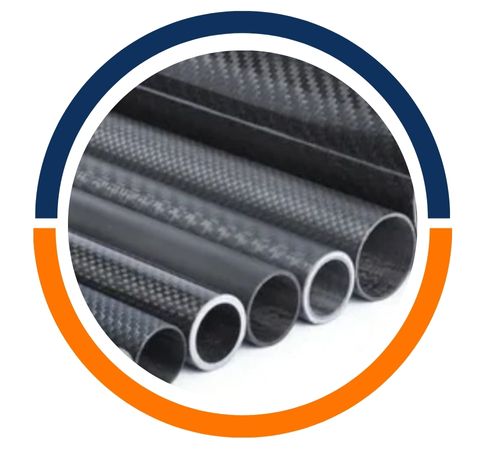

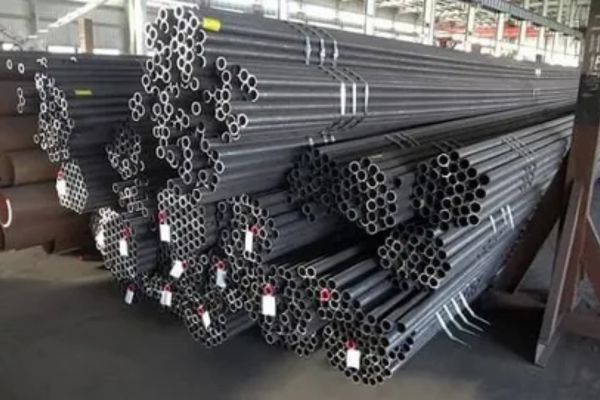

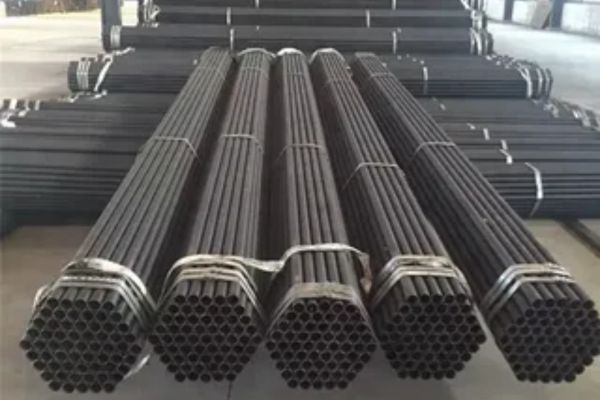

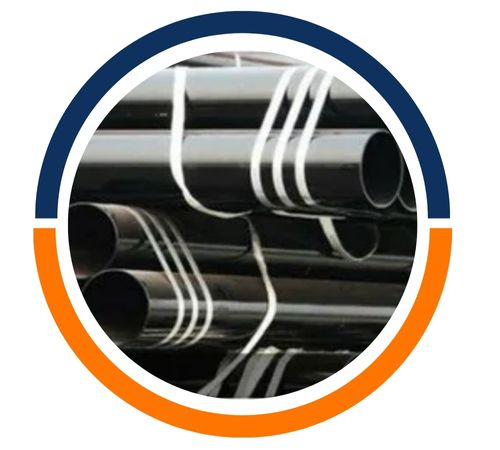

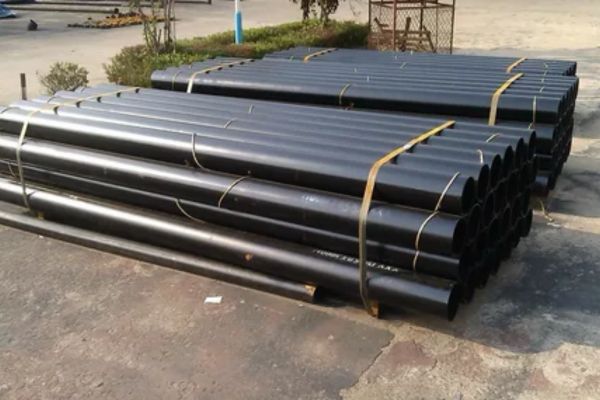

Based in the industrious heart of Hamilton, New Zealand, Latham Steel has built a strong reputation as a trusted manufacturer and supplier, particularly known for the reliability of its CDS Tubing. We understand that the backbone of any successful project is quality materials, which is why our CDS (Cold Drawn Seamless) tubing is produced with meticulous attention to detail. It is a product we stand behind, designed to meet the rigorous demands of New Zealand’s diverse industries, from construction and manufacturing to innovative engineering applications.
The defining characteristic of our CDS tubing is its exceptional composition and mechanical properties. Made from high-quality steel, the cold drawing process creates a seamless tube with a superior surface finish and remarkably consistent dimensions. This results in outstanding strength, increased hardness, and improved tensile properties compared to standard hot-finished tubing. Essentially, this process gives the material a tougher, more resilient character, making it ideally suited for applications where precision, durability, and the ability to withstand significant pressure or load are absolutely crucial.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018Â c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | Â 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 50,000 | 40 | B-57 | Â 97 |
| As-Drawn | Â 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | Â 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020Â C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | Â 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | Â 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | Â 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026Â C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | Â 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | Â 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | Â 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | Â 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | Â 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | Â | Â | 1.2 | 0.27 | Â | Â | 1.5 | 0.33 | Â | Â | 1.73 | 0.37 | Â | Â | Â | Â |
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | Â | Â | 1.65 | 0.49 | Â | Â | 2 | 0.58 | Â | Â | 2.24 | 0.64 | Â | Â | Â | Â |
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | Â | Â | 1.65 | 0.63 | Â | Â | 2 | 0.74 | Â | Â | 2.31 | 0.87 | Â | Â | Â | Â |
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | Â | Â | 2.77 | 1.29 | Â | Â | Â | Â |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | Â | Â | 2.87 | 1.71 | Â | Â | Â | Â |
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | Â | Â | 3.38 | 2.54 | Â | Â | Â | Â |
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | Â | Â | 3.56 | 3.44 | Â | Â | Â | Â |
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | Â | Â | 3.68 | 4.11 | Â | Â | Â | Â |
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | Â | Â | 3.91 | 5.52 | Â | Â | Â | Â |
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | Â | Â | 5.16 | 8.77 | Â | Â | Â | Â |
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | Â | Â | 5.49 | 11.47 | Â | Â | Â | Â |
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | Â | Â | 5.74 | 13.78 | Â | Â | Â | Â |
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | Â | Â | 6.02 | 6.32 | Â | Â | Â | Â |
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | Â | Â | 6.55 | 2210 | Â | Â | Â | Â |
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | Â | Â | 7.11 | 28.69 | Â | Â | Â | Â |
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | Â | Â | 10.81 | 53.9 |
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | Â | Â | 12.2 | 82.8 |
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | Â | Â | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 |
| 400 | 16 | 406.4 | 4.19 | 42.2 | Â | Â | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 |
| 450 | 18 | 457.2 | 4.19 | 47.46 | Â | Â | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 |
| 500 | 2C | 508 | 4.78 | 60.23 | Â | Â | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 |
| 550 | 22 | 558.8 | 4.78 | 65.95 | Â | Â | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 |
| 600 | 24 | 609.6 | 5.54 | 83.8 | Â | Â | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 |
| 650 | 26 | 660.4 | Â | Â | Â | Â | Â | Â | 7.92 | 129.4 | 12.7 | 205.97 | Â | Â | 9.53 | 155.32 | Â | Â | Â | Â |
| 700 | 28 | 711.2 | Â | Â | Â | Â | Â | Â | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | Â | Â | Â | Â |
| 750 | 3C | 762 | 6.35 | 120.15 | Â | Â | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | Â | Â | Â | Â |
| 800 | 32 | 812.8 | Â | Â | Â | Â | Â | Â | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | Â | Â |
| 850 | 34 | 863.6 | Â | Â | Â | Â | Â | Â | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | Â | Â |
| 900 | 36 | 914.4 | Â | Â | Â | Â | Â | Â | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | Â | |
The versatility of Latham Steel’s CDS tubing is what makes it such a valued resource across so many sectors. You’ll find it forming the critical framework in machinery and automotive parts, serving as hydraulic cylinders in demanding industrial settings, and acting as sturdy structural components in construction projects. Its reliability also makes it a preferred choice for agricultural equipment, roll cages, and various architectural applications. Essentially, wherever there’s a need for a strong, precise, and dependable hollow steel section, our CDS tubing provides a proven and effective solution.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
